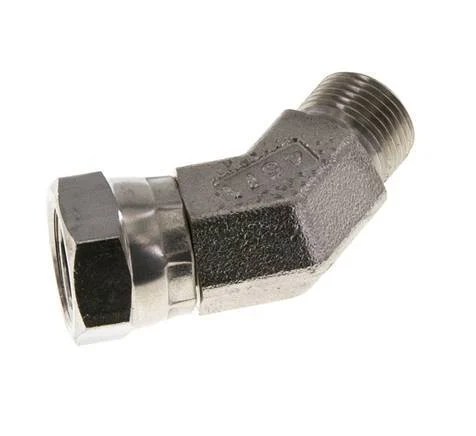

45deg Angled Fitting G3/8” Female x Male High Pressure Stainless Steel 60° Cone 325bar (4566.25psi) Hydraulic

This 45-degree elbow fitting is used for high pressure hydraulic applications up to 325 bar (4566.25 psi). Stainless steel 316 (1.4571) fittings have excellent corrosion resistance (better than stainless steel 304). It has a 60° cone seat design.

Specifications

Thread : 3/8 inch
Connection type : Inner thread cylindrical BSPP-G,Outer thread cylindrical BSPP-G
Material : Stainless steel
Max pressure at 20 °C (bar) : 325
Fitting features : Hydraulic
Type of sealing : 60° cone
Quality of material : Stainless steel (1.4571)
Bend angle (°) : 45
Material connection 1 : Stainless steel
Material connection 2 : Stainless steel
Material quality connection 1 : Stainless steel (1.4571)
Material quality connection 2 : Stainless steel (1.4571)
Shape : Elbow
With drain : No
