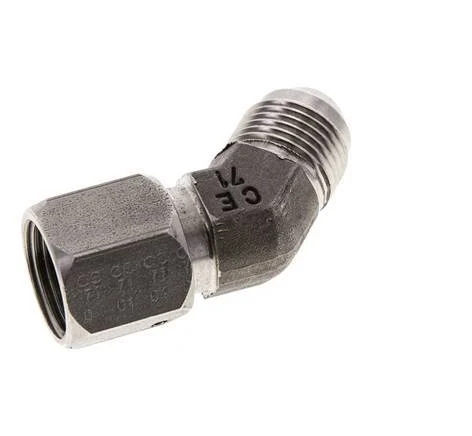

45deg JIC Angled Fitting UNF 3/4”-16 (Dash Size 8) Male x Female Stainless Steel 275bar (3863.75psi)

This is a JIC 45-degree fitting with UNF threads. Stainless steel 316 (1.4571) fittings have excellent corrosion resistance (better than stainless steel 304). The maximum operating pressure is 275 bar (3863.75 psi).

Specifications

Thread : UNF 3/4-16
Dash Size : 8
Connection type : Inner thread flare (UNF),Outer thread flare (UNF)
Material : Stainless steel
Max pressure at 20 °C (bar) : 275
Quality of material : Stainless steel (1.4571)
Bend angle (°) : 45
Material connection 1 : Stainless steel
Material connection 2 : Stainless steel
Material quality connection 1 : Stainless steel (1.4571)
Material quality connection 2 : Stainless steel (1.4571)
Shape : Elbow
