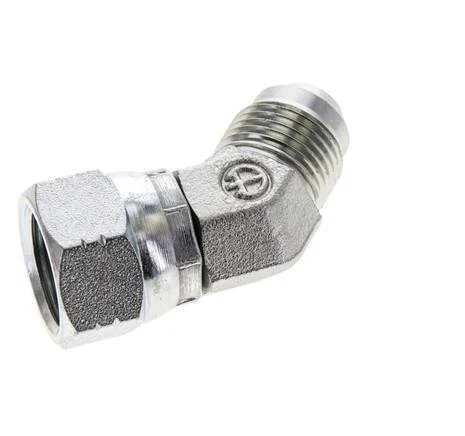

45deg JIC Angled Fitting UNF 3/4”-16 (Dash Size 8) Male x Female Steel 275bar (3863.75psi)

This is a JIC 45-degree fitting with UNF threads. Zinc-coated steel fittings provide some corrosion resistance, but are not meant for corrosive environments. The maximum operating pressure is 275 bar (3863.75 psi).

Specifications

Thread : UNF 3/4-16
Dash Size : 8
Connection type : Inner thread flare (UNF),Outer thread flare (UNF)
Material : Steel
Max pressure at 20 °C (bar) : 275
Bend angle (°) : 45
Material connection 1 : Steel
Material connection 2 : Steel
Shape : Elbow
Surface protection connection 1 : Galvanic zink plated
Surface protection connection 2 : Galvanic zink plated
