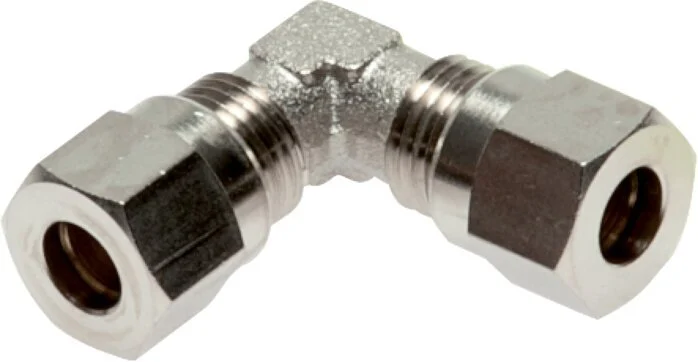

4LL Nickel plated Brass Elbow Cutting Fitting 100 bar ISO 8434-1 [2 Pieces]

This nickel plated brass elbow screw connection is designed with two cutting ring connection points. Connection 1 is a 4 mm cutting ring with a M8x1 union nut. Connection 2 is a 4 mm cutting ring with a M8x1 union nut. The maximum pressure is 100 bar (1450 psi). The fitting is suitable for temperatures from -60 to 300 °C (-76 to 572 °F). It is made in accordance with DIN EN ISO 8434-1 (DIN 2353).

Pros:

• Adheres to DIN EN ISO 8434-1 (DIN 2353)
• Suitable for neutral and non-corrosive media

Specifications

Union nut thread : M8 x 1
Load class (DIN 2353) : LL (very light)
Cutting ring connection (mm) : 4
Connection type : Cutting ring
Material : Brass
Max pressure at 20 °C (bar) : 100
Min temperature (°C) : -60
Max temperature (°C) : 300
Standard : DIN EN ISO 8434-1 (DIN 2353)
Bend angle (°) : 90
Material connection 1 : Brass
Material connection 2 : Brass
Shape : Elbow
Surface protection connection 1 : Nickel-plated
With drain : No
