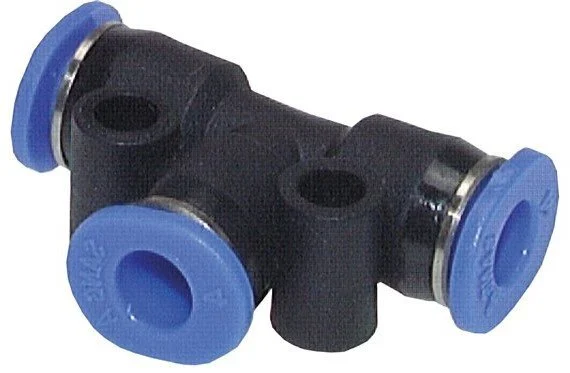

4mm x 6mm Tee Push-in Fitting PBT NBR Compact Design

This is a 3 connection tee push-in fitting. Push-in fittings are ideal to create fast and reliable connections for pneumatic hoses. Connection 1 has a 4 mm push-in port and connections 2 and 3 are 6 mm push-in ports. The body is made of PBT. The connection ports are made of PBT. The seal material is NBR. The operating pressure range is -0.95 to 10 bar (-14 to 145 psi), making it suitable for vacuums. The fitting is suitable for temperatures from 0 to 60 °C (32 to 140 °F). The push-in fitting is easily installed by pushing the pneumatic tube against the release ring-end of the fitting until it stops, and the internal claw secures it into place. It is easily uninstalled by pushing the release ring inward towards the fitting and pulling the tubing back.

Pros:

• Quick and easy installation and release of pneumatic tubing
• It can be used for vacuum applications
• Suitable for use with oiled and unoiled compressed air
• It has a compact design

Specifications

Push-in connection : 6 mm
Push-in connection (smaller) : 4 mm
Connection type : Push-in
Material : PBT
Seal material : NBR (nitrile rubber)
Fitting features : Vacuum,Reducing
Min pressure (bar) : -0.95
Max pressure at 20 °C (bar) : 10
Min temperature (°C) : 0
Max temperature (°C) : 60
Model : T-piece
Material connection 1 : PBT
Material connection 2 : PBT
Material connection 3 : PBT
With drain : No
