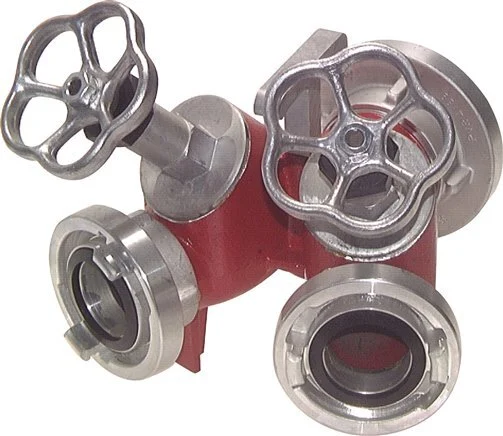

52-C 2xStorz Distributor with Valves

This is a Storz distributor with an input 52-C Storz connection of (lug distance of 66 mm) and 2 output 52-C Storz (lug distance of 66 mm) connections. It has a shut-off valve for each output connection. The maximum operating pressure is 16 bar (232 psi). The coupling is suitable for temperatures between -40 to 110 °C (-40 to 230 °F). They are typically used for fire hydrant applications.

Pros:

• Equipped with 2 valves for shut-off control
• Quick connection and release by twisting 120 degrees

Specifications

Storz size : 52-C (Storz)
Storz size (smaller) : 52-C (Storz)
Lug distance 1 : 66 mm
Lug distance 2 : 66 mm
Max temperature (°C) : 110
Min temperature (°C) : -40
Max pressure at 20 °C (bar) : 16
Number of Storz connections : 3
