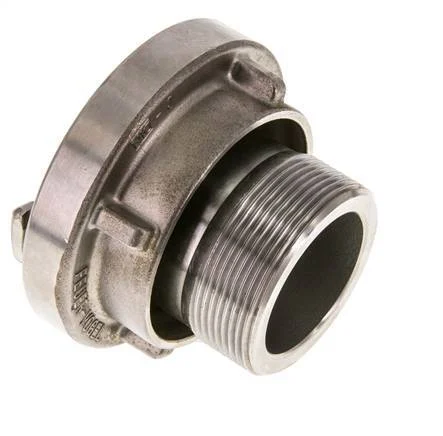

52-C (66 mm) Stainless Steel Storz Coupling G 2” Male Thread Rotatable

This is a 52-C Storz coupling with a lug distance of 66 mm and G 2 inch male threads. It is made of stainless steel with an FKM seal. The maximum operating pressure is 16 bar (232 psi). The coupling is suitable for temperatures between -15 to 200 °C (5 to 392 °F).

Storz couplings are used in fire protection systems and industrial applications. Both parts of the Storz coupling have the same head structure, so couplings with the same lug distance can be buckled together.

Pros:

• Quick connection and release by twisting 120°
• All couplings with the same lug distance and nominal size are compatible with one another
• Stainless steel couplings have excellent corrosion resistance
• It has a rotatable connection, which prevents any twisting of the attached hose

Cons:

• Storz couplings have no shut-off function

Specifications

Storz size : 52-C
Size of threaded connection [inch] : 2 inch
Thread connection : Outer thread cylindrical BSPP-G
Lug distance : 66 mm
Material : Stainless steel 1.4581
Seal material : FKM (FPM)
Operating pressure (bar) : 16
Coupling features : Rotatable
Min temperature (°C) : -15
Max temperature (°C) : 200
Rotating storz head : Yes
Suction coupling : No
