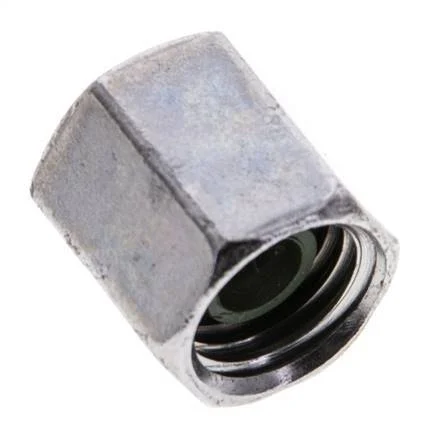

This steel functional nut is designed to be used with a cutting ring fitting. Suitable for pipes with an outer diameter of 6 mm. In accordance to the DIN 2353, it has an L (series) load class. It has an FKM seal. It is made in accordance with the ISO 8434-1.
Pros:
- Adheres to ISO 8434-1
Specifications
Connection size : M12 x 1.5
Outer diameter : 6 mm
Connection type : Inner thread metric
Material : Steel
Seal material : FKM (FPM)
Load class (DIN 2353) : L (light)
Standard : DIN EN ISO 8434-1 (DIN 2353)
Size of threaded connection [inch] : M12 x 1.5
