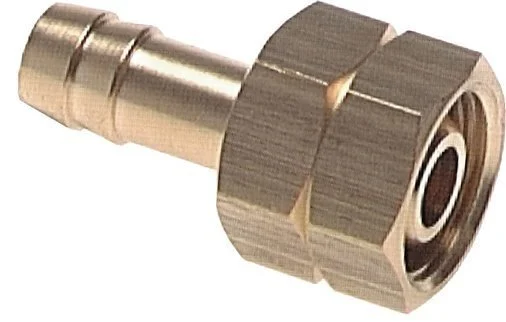

6 mm (1/4”) & G1/2” LH Brass Hose Barb Union Nut [2 Pieces]

This brass hose screwed-on connection is designed with a hose pillar and a union nut connection point. Connection 1 is hose pillar, designed for a hose with an inner diameter of 6 mm (1/4 inch). Connection 2 has G 1/2 inch union nut with left hand threads. The maximum pressure is 16 bar (232 psi). The wrench width is 24 mm.

Pros:

• The thread is placed on the union nut
• Suitable for neutral and non-corrosive media

Specifications

Hose pillar connection : 1/4 inch (6.35 mm)
Union nut connection : G 1/2 inch (LH)
Connection type : Hose pillar,Union nut
Material : Brass
Max pressure at 20 °C (bar) : 16
Fitting features : With union nut
Material connection 1 : Brass
Material connection 2 : Brass
Shape : Straight
With drain : No
