6L & M10x1 Stainless Steel Tee Swivel Joint Cutting Fitting with Male Threads 315 bar ISO 8434-1

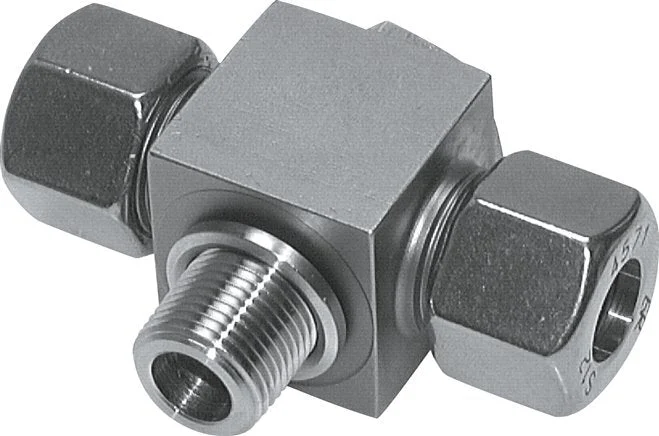

This stainless steel 1.4571 Tee swivel joint is designed with one male threaded connection and two cutting ring connection ports in a T-shape. Connection 1 is a 6 mm cutting ring with a M12x1.5 union nut. Connection 2 is a 6 mm cutting ring with a M12x1.5 union nut. Connection 3 has male M 10×1 threads. The maximum pressure is 315 bar (4568 psi). The fitting is suitable for temperatures from -60 to 400 °C (-76 to 752 °F). It is made in accordance with DIN EN ISO 8434-1 (DIN 2353).

Pros:

• Adheres to DIN EN ISO 8434-1 (DIN 2353)
• Stainless steel material has better chemical resistance than other materials
• Suitable for hydraulic applications

Specifications

Thread : M10 x 1
Union nut thread : M12 x 1.5
Cutting ring connection (mm) : 6
Load class (DIN 2353) : L (light)
Connection type : Cutting ring,Outer thread metric
Material : Stainless steel
Max pressure at 20 °C (bar) : 315
Min temperature (°C) : -60
Max temperature (°C) : 400
Standard : DIN EN ISO 8434-1 (DIN 2353)
Model : T-piece
Material connection 1 : Stainless steel
Material connection 2 : Stainless steel
Material connection 3 : Stainless steel
Material quality connection 1 : Stainless steel (1.4571)
Material quality connection 2 : Stainless steel (1.4571)
Material quality connection 3 : Stainless steel (1.4571)
With drain : No
