6LL & G1/8” Nickel plated Brass Swivel Joint Cutting Fitting with Male Threads 100 bar Rotatable ISO 8434-1 [2 Pieces]

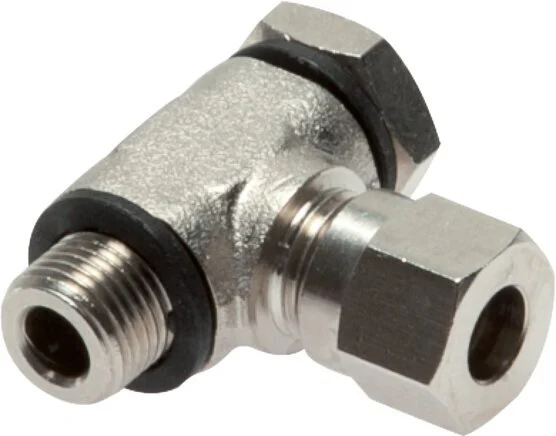

This nickel plated brass elbow swivel joint is designed with one male threaded connection and one cutting ring connection port. The thread connection is rotatable. Connection 1 is a 6 mm cutting ring with a M10x1 union nut. Connection 2 has male G 1/8 inch threads. The maximum pressure is 100 bar (1450 psi). The fitting is suitable for temperatures from -20 to 80 °C (-4 to 176 °F). It is made in accordance with DIN EN ISO 8434-1 (DIN 2353).

Pros:

• Adheres to DIN EN ISO 8434-1 (DIN 2353)
• Thread connection is rotatable
• Suitable for neutral and non-corrosive media

Specifications

Thread : 1/8 inch
Union nut thread : M10 x 1
Load class (DIN 2353) : LL (very light)
Cutting ring connection (mm) : 6
Connection type : Cutting ring,Outer thread cylindrical BSPP-G
Material : Brass
Max pressure at 20 °C (bar) : 100
Min temperature (°C) : -20
Max temperature (°C) : 80
Standard : DIN EN ISO 8434-1 (DIN 2353)
Bend angle (°) : 90
Material connection 1 : Brass
Material connection 2 : Brass
Shape : Elbow
Surface protection connection 1 : Nickel-plated
With drain : No
