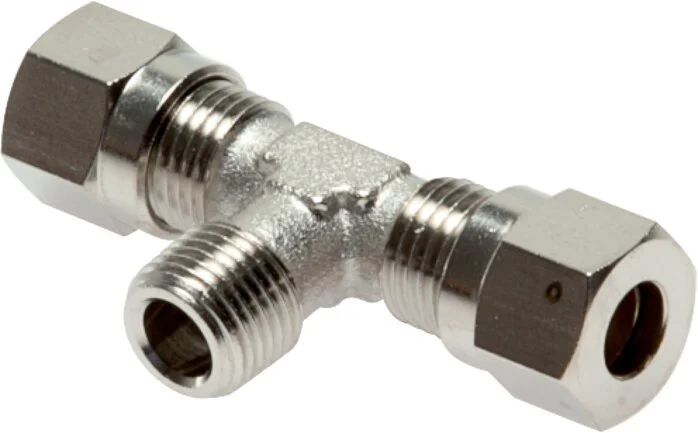

6LL & R1/8” Nickel plated Brass T-Shape Tee Cutting Fitting with Male Threads 100 bar ISO 8434-1 [2 Pieces]

This nickel plated brass Tee screw in connection is designed with one male threaded connection and two cutting ring connection ports in a T-shape. Connection 1 is a 6 mm cutting ring with a M10x1 union nut. Connection 2 is a 6 mm cutting ring with a M10x1 union nut. Connection 3 has male R 1/8 inch threads. The maximum pressure is 100 bar (1450 psi). The fitting is suitable for temperatures from -60 to 300 °C (-76 to 572 °F). It is made in accordance with DIN EN ISO 8434-1 (DIN 2353).

Pros:

• Adheres to DIN EN ISO 8434-1 (DIN 2353)
• Suitable for neutral and non-corrosive media

Specifications

Thread : 1/8 inch
Union nut thread : M10 x 1
Cutting ring connection (mm) : 6
Load class (DIN 2353) : LL (very light)
Connection type : Cutting ring,Outer thread conical BSPT-R
Material : Brass
Max pressure at 20 °C (bar) : 100
Min temperature (°C) : -60
Max temperature (°C) : 300
Standard : DIN EN ISO 8434-1 (DIN 2353)
Model : T-piece
Material connection 1 : Brass
Material connection 2 : Brass
Material connection 3 : Brass
Surface protection connection 1 : Nickel-plated
Surface protection connection 2 : Nickel-plated
Surface protection connection 3 : Nickel-plated
With drain : No
