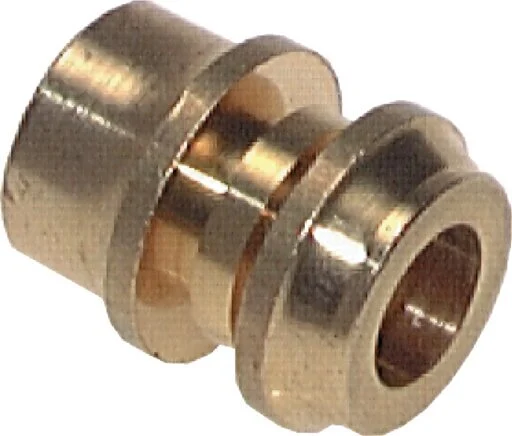

6mm Brass Straight Compression Fitting DN 8135 bar DIN EN 1254-2 [2 Pieces]

This brass straight screw connection is designed with two compression ring connection points. Connection 1 is a 6 mm compression ring with a M10x1 union nut. Connection 2 is a 6 mm compression ring with a M10x1 union nut. The maximum pressure is 135 bar (1958 psi). The fitting is suitable for temperatures from -60 to 300 °C (-76 to 572 °F). The nominal diameter is 8 mm. It is made in accordance with DIN EN 1254-2.

Pros:

• Adheres to DIN EN 1254-2
• Suitable for neutral and non-corrosive media

Specifications

Compression ring connection (mm) : 6
Union nut thread : M10 x 1
Connection type : Compression ring
Material : Brass
Nominal diameter (mm) : 8
Max pressure at 20 °C (bar) : 135
Min temperature (°C) : -60
Max temperature (°C) : 300
Standard : DIN EN 1254-2
Material connection 1 : Brass
Material connection 2 : Brass
Shape : Straight
With drain : No
