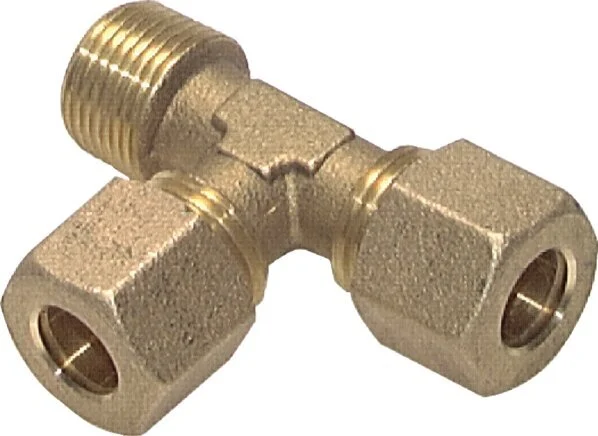

6mm & R1/4” Brass Right Angle Tee Compression Fitting with Male Threads 150 bar DIN EN 1254-2 [2 Pieces]

This brass Tee screw in connection is designed with one male threaded connection and two compression ring connection ports in a L-shape. Connection 1 is a 6 mm compression ring with a M10x1 union nut. Connection 2 is a 6 mm compression ring with a M10x1 union nut. Connection 3 has male R 1/4 inch threads. The maximum pressure is 150 bar (2175 psi). The fitting is suitable for temperatures from -60 to 300 °C (-76 to 572 °F). It is made in accordance with DIN EN 1254-2.

Pros:

• Adheres to DIN EN 1254-2
• Suitable for neutral and non-corrosive media

Cons:

• The brass compression ring screw connections cannot be combined with the cutting ring pipe screw connectors ISO 8434-1 (DIN 2353)

Specifications

Thread : 1/4 inch
Compression ring connection (mm) : 6
Union nut thread : M10 x 1
Connection type : Compression ring,Outer thread conical BSPT-R
Material : Brass
Max pressure at 20 °C (bar) : 150
Min temperature (°C) : -60
Max temperature (°C) : 300
Standard : DIN EN 1254-2
Model : L-shape
Material connection 1 : Brass
Material connection 2 : Brass
Material connection 3 : Brass
With drain : No
