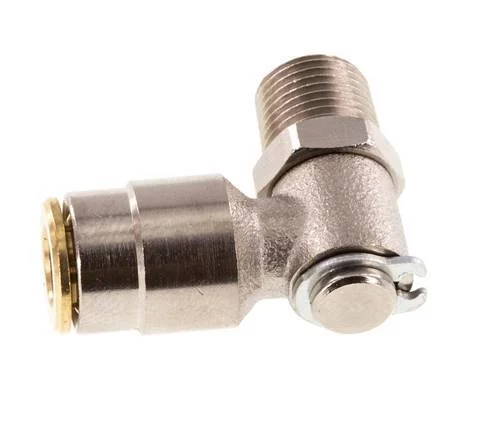

6mm x R1/8” 90deg Elbow Push-in Fitting with Male Threads Brass NBR RotatableHigh Pressure

This is a 2 connection elbow push-in fitting. Push-in fittings are ideal to create fast and reliable connections for pneumatic hoses. Connection 1 is a 6 mm push-in port. Connection 2 has R 1/8 inch male threads. The body is made of brass. The connection ports are made of nickel plated brass. The seal material is NBR. The maximum pressure is 250 bar (3625 psi). The fitting is suitable for temperatures from -20 to 70 °C (-4 to 158 °F). The push-in fitting is easily installed by pushing the pneumatic tube against the release ring-end of the fitting until it stops, and the internal claw secures it into place. It is easily uninstalled by pushing the release ring inward towards the fitting and pulling the tubing back.

Pros:

• Quick and easy installation and release of pneumatic tubing
• It can be used for high pressure applications
• The threaded connection is rotatable
• Suitable for lubrication systems

Specifications

Thread : 1/8 inch
Push-in connection : 6 mm
Connection type : Outer thread conical BSPT-R,Push-in
Material : Brass
Seal material : NBR (nitrile rubber)
Max pressure at 20 °C (bar) : 250
Min temperature (°C) : -20
Max temperature (°C) : 70
Fitting features : High pressure,Rotatable
Bend angle (°) : 90
Material connection 1 : Brass
Material connection 2 : Brass
Shape : Elbow
Surface protection connection 1 : Nickel-plated
Surface protection connection 2 : Nickel-plated
With drain : No
