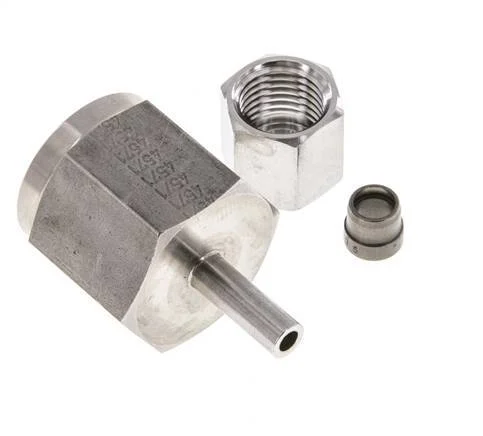

6S & G1/2” Stainless Steel Straight Swivel with Female Threads for Pressure Gauges 630 bar ISO 8434-1

This stainless steel 1.4571 straight screwed-on screw connection is designed with This fittings is designed to use with pressure gauge. Connection 1 has a 6 mm swivel tube connection. Connection 2 has female G 1/2 inch threads. The maximum pressure is 630 bar (9135 psi). The fitting is suitable for temperatures from -60 to 400 °C (-76 to 752 °F). It is made in accordance with DIN EN ISO 8434-1 (DIN 2353).

Pros:

• Adheres to DIN EN ISO 8434-1 (DIN 2353)
• Stainless steel material has better chemical resistance than other materials
• Suitable for hydraulic applications

Specifications

Thread : 1/2 inch
Load class (DIN 2353) : S (heavy)
Swivel tube connection : 6 S
Connection type : Swivel tube connection,Inner thread cylindrical BSPP-G
Material : Stainless steel
Max pressure at 20 °C (bar) : 630
Min temperature (°C) : -60
Max temperature (°C) : 400
Standard : DIN EN ISO 8434-1 (DIN 2353)
Quality of material : Stainless steel (1.4571)
Material connection 1 : Stainless steel
Material connection 2 : Stainless steel
Material quality connection 1 : Stainless steel (1.4571)
Shape : Straight
With drain : No
