6S & M12x1.5 Stainless Steel Swivel Joint Cutting Fitting with Male Threads DN 5400 bar FKM Rotatable ISO 8434-1

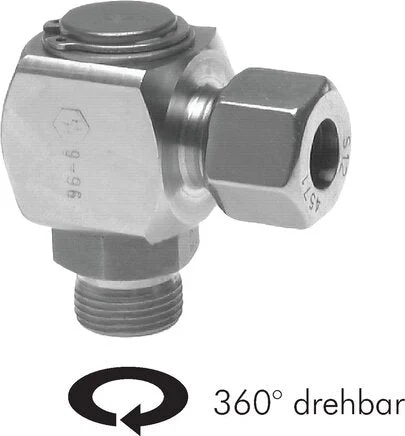

This stainless steel 1.4404 elbow swivel joint is designed with one male threaded connection and one cutting ring connection port. The thread connection is rotatable. Connection 1 is a 6 mm cutting ring with a M14x1.5 union nut. Connection 2 has male M 12×1.5 threads. The seal material is FKM. The maximum pressure is 400 bar (5800 psi). The fitting is suitable for temperatures from -20 to 120 °C (-4 to 248 °F). The nominal diameter is 5 mm. It can withstand 10 rotations per minute. It is made in accordance with DIN EN ISO 8434-1 (DIN 2353).

Pros:

• Adheres to DIN EN ISO 8434-1 (DIN 2353)
• Thread connection is rotatable
• Stainless steel material has better chemical resistance than other materials
• Suitable for hydraulic applications

Cons:

• It is necessary to use a flexible connection

Specifications

Thread : M12x1.5
Union nut thread : M14 x 1.5
Load class (DIN 2353) : S (heavy)
Cutting ring connection (mm) : 6
Connection type : Cutting ring,Outer thread metric
Material : Stainless steel
Seal material : FKM (FPM)
Nominal diameter (mm) : 5
Max pressure at 20 °C (bar) : 400
Min temperature (°C) : -20
Max temperature (°C) : 120
Standard : DIN EN ISO 8434-1 (DIN 2353)
Quality of material : Stainless steel (1.4404)
Max. number of revolutions (Rpm) : 10
Bend angle (°) : 90
Material connection 1 : Stainless steel
Material connection 2 : Stainless steel
Material quality connection 1 : Stainless steel (1.4404)
Shape : Elbow
With drain : No
