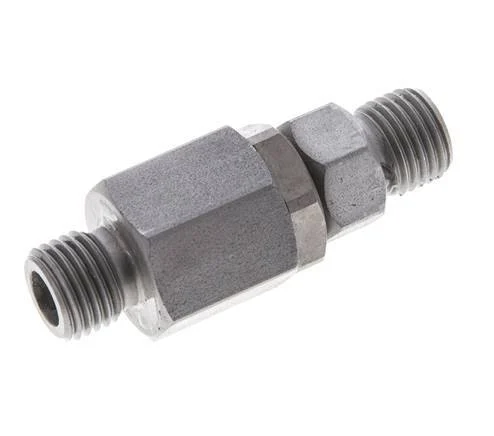

6S Zink plated Steel Ball-Guided Swivel Joint Cutting Fitting DN 4350 bar NBR ISO 8434-1

This zink plated steel straight ball-guided screw connection is designed with two cutting ring connection points. Connection 1 is a 6 mm cutting ring with a M14x1.5 union nut. Connection 2 is a 6 mm cutting ring with a M14x1.5 union nut. The seal material is NBR. The maximum pressure is 350 bar (5075 psi). The fitting is suitable for temperatures from -20 to 90 °C (-4 to 194 °F). The nominal diameter is 4 mm. It can withstand 20 rotations per minute. It is made in accordance with DIN EN ISO 8434-1 (DIN 2353).

Pros:

• Adheres to DIN EN ISO 8434-1 (DIN 2353)
• Suitable for hydraulic applications

Specifications

Union nut thread : M14 x 1.5
Load class (DIN 2353) : S (heavy)
Cutting ring connection (mm) : 6
Connection type : Cutting ring
Material : Steel
Seal material : NBR (nitrile rubber)
Nominal diameter (mm) : 4
Max pressure at 20 °C (bar) : 350
Min temperature (°C) : -20
Max temperature (°C) : 90
Standard : DIN EN ISO 8434-1 (DIN 2353)
Fitting features : Ball guided,High pressure
Max. number of revolutions (Rpm) : 20
Length (mm) : 61
Material connection 1 : Steel
Material connection 2 : Steel
Shape : Straight
Surface protection connection 1 : Galvanic zink plated
With drain : No
