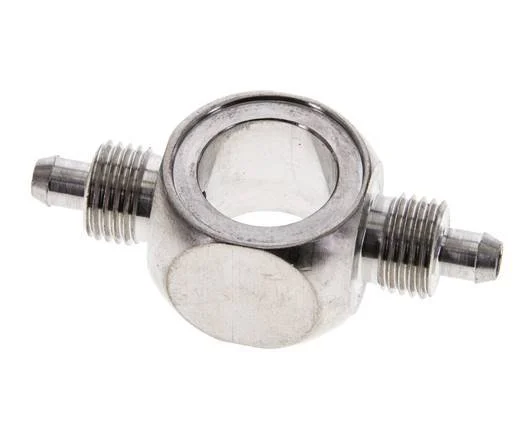

6×4 & G1/4” Stainless Steel 1.4571 Banjo Tee Push-on Fitting

This stainless steel 1.4571 banjo tee push-on fitting is designed with two push-on connections and a banjo bolt hole. Connection 1 is a 6×4 mm push-on connection. Connection 2 is a 6×4 mm push-on connection. The banjo bolt with G 1/4 inch threads is suitable with this fitting. The operating pressure range is -0.95 to 20 bar (-14 to 290 psi), making it suitable for vacuums. The fitting is suitable for temperatures from -20 to 220 °C (-4 to 428 °F).

Note: 2 union nuts and 1 banjo bolt are not included. The union nut thread is M 10 x 1.

Pros:

• Easy assembly and disassembly with the push-on connection design
• It can be used for vacuum applications
• Stainless steel material has better chemical resistance than other common fitting materials like brass, aluminum, and plastic

Specifications

Thread : 1/4 inch
Push-on connection : 4×6 mm
Union nut thread : M10 x 1
Connection type : Push-on
Material : Stainless steel
Fitting features : Vacuum
Min pressure (bar) : -0.95
Max pressure at 20 °C (bar) : 20
Min temperature (°C) : -20
Max temperature (°C) : 220
Model : Banjo
Material connection 1 : Stainless steel
Material connection 2 : Stainless steel
Material connection 3 : Stainless steel
Material quality connection 1 : Stainless steel (1.4571)
Material quality connection 2 : Stainless steel (1.4571)
Material quality connection 3 : Stainless steel (1.4571)
With drain : No
