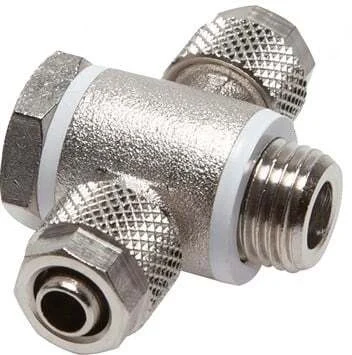

6×4 & M5 Nickel plated Brass Banjo Tee Push-on Fitting with Male Threads with O-ring [2 Pieces]

This nickel plated brass banjo tee push-on fitting is designed with two push-on connections and with one male threaded connection. Connection 1 is a 6×4 mm push-on connection. Connection 2 is a 6×4 mm push-on connection. Connection 3 has M 5 male threads. It has an O-ring for sealing. The operating pressure range is -0.95 to 20 bar (-14 to 290 psi), making it suitable for vacuums. The fitting is suitable for temperatures from -10 to 70 °C (14 to 158 °F).

Pros:

• Easy assembly and disassembly with the push-on connection design
• It can be used for vacuum applications
• The male thread connection has an O-ring seal
• Suitable for neutral and non-corrosive media

Specifications

Thread : M5
Push-on connection : 4×6 mm
Connection type : Push-on,Outer thread metric
Material : Brass
Fitting features : Vacuum
Min pressure (bar) : -0.95
Max pressure at 20 °C (bar) : 20
Min temperature (°C) : -10
Max temperature (°C) : 70
Type of sealing : O-ring
Model : Banjo
Material connection 1 : Brass
Material connection 2 : Brass
Material connection 3 : Brass
Surface protection connection 1 : Nickel-plated
Surface protection connection 2 : Nickel-plated
Surface protection connection 3 : Nickel-plated
With drain : No
