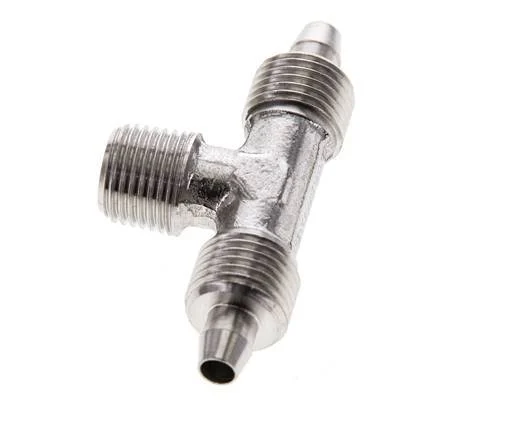

6×4 & R1/8” Stainless Steel 1.4404 Tee Push-on Fitting with Male Threads

This stainless steel 1.4404 tee push-on fitting is designed with two push-on connections and with one male threaded connection. Connection 1 is a 6×4 mm push-on connection. Connection 2 is a 6×4 mm push-on connection. Connection 3 has R 1/8 inch male threads. The operating pressure corresponds to the pipes or hoses used.

Note: 2 union nuts are not included. The union nut thread is M 10 x 1.

Pros:

• Easy assembly and disassembly with the push-on connection design
• Stainless steel material has better chemical resistance than other common fitting materials like brass, aluminum, and plastic

Specifications

Thread : 1/8 inch
Push-on connection : 4×6 mm
Union nut thread : M10 x 1
Connection type : Push-on,Outer thread conical BSPT-R
Material : Stainless steel
Model : T-piece
Material connection 1 : Stainless steel
Material connection 2 : Stainless steel
Material connection 3 : Stainless steel
Material quality connection 1 : Stainless steel (1.4404)
Material quality connection 2 : Stainless steel (1.4404)
Material quality connection 3 : Stainless steel (1.4404)
With drain : No
