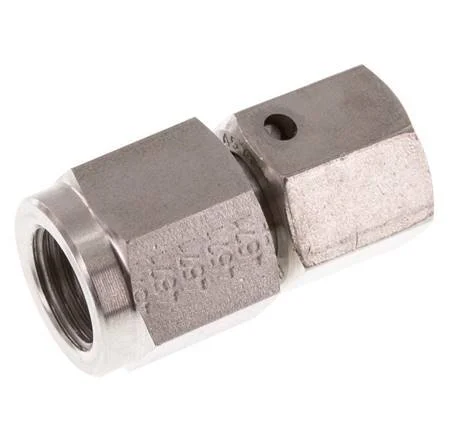

8L & G1/4” Stainless Steel Straight Swivel with Female Threads for Pressure Gauges 315 bar FKM Sealing Cone ISO 8434-1

This stainless steel 1.4571 straight screwed-on screw connection is designed with This fittings is designed to use with pressure gauge. Connection 1 has a 8 mm swivel tube connection. Connection 2 has female G 1/4 inch threads. It has a sealing cone for sealing. The seal material is FKM. The maximum pressure is 315 bar (4568 psi). The fitting is suitable for temperatures from -20 to 200 °C (-4 to 392 °F). It is made in accordance with DIN EN ISO 8434-1 (DIN 2353).

Pros:

• Adheres to DIN EN ISO 8434-1 (DIN 2353)
• With sealing cone for sealing
• Stainless steel material has better chemical resistance than other materials
• Suitable for hydraulic applications

Specifications

Thread : 1/4 inch
Load class (DIN 2353) : L (light)
Swivel tube connection : 8 L
Connection type : Swivel tube connection,Inner thread cylindrical BSPP-G
Material : Stainless steel
Seal material : FKM (FPM)
Max pressure at 20 °C (bar) : 315
Min temperature (°C) : -20
Max temperature (°C) : 200
Standard : DIN EN ISO 8434-1 (DIN 2353)
Type of sealing : Sealing cone
Threaded end seal 1 : Sealing cone
Quality of material : Stainless steel (1.4571)
Material connection 1 : Stainless steel
Material connection 2 : Stainless steel
Material quality connection 1 : Stainless steel (1.4571)
Shape : Straight
With drain : No
