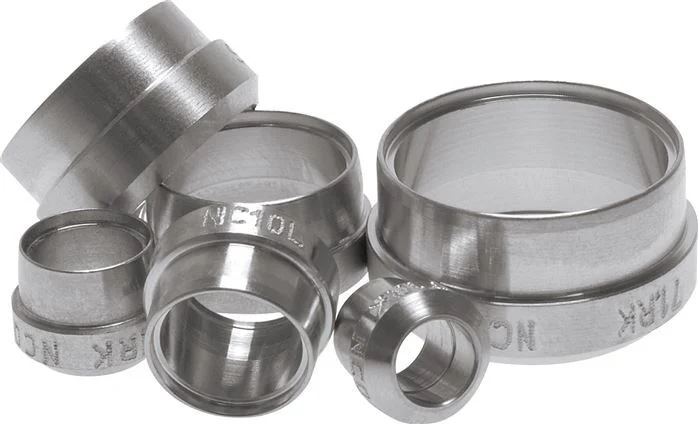

8L or 8S Stainless steel Compression ring [2 Pieces]

This is the compression ring component that needs to be replaced after use in a compression ring connection fitting. It is made out of stainless steel (316 Ti (1.4571)). Suitable for steel and stainless steel pipes. It is designed for an outer pipe/hose diameter of 8 mm. Designed for an M14 x 1.5 mm or M16 x 1.5 union nut. It has an L (light) and S (heavy) load class according to the DIN 2353.

Pros:

• It is suitable for steel and stainless steel pipes

Cons:

• If disassembled, this component needs to be replaced

CRL series

The CRL series are accessories to be used with compression and cutting ring fittings. Once these fittings are used, their compression or cutting ring component needs to be replaced if they are disassembled. They are made out of brass, steel, or stainless steel, designed for usage with pipes and hoses with an outer diameter from 4 to 42 mm.

Specifications

Outer pipe diameter (mm) : 8
Union nut thread : M14 x 1.5,M16 x 1.5
Load class (DIN 2353) : L (light),S (heavy)
Material : Stainless steel
Material quality : Stainless steel 316 Ti (1.4571)
With sealing : No
With safety collar : No
With knurl : No
Suitable for aluminum tube : No
Suitable for copper tube : No
Suitable for plastic multi-layer pipes : No
Suitable for plastic tube : No
Suitable for stainless steel tube : Yes
Suitable for steel tube : Yes
