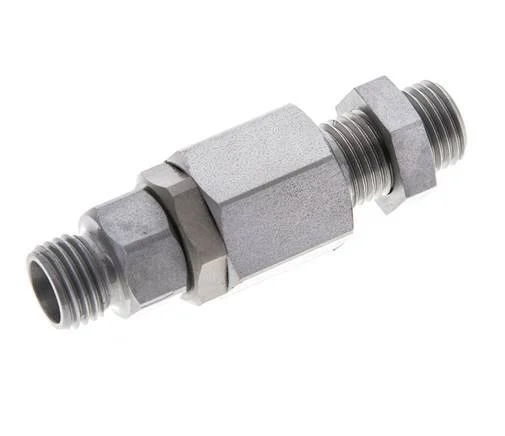

8L Zink plated Steel Ball-Guided Swivel Joint Cutting Fitting Bulkhead 315 bar NBR ISO 8434-1

This zink plated steel straight ball-guided screw connection is designed with two cutting ring connection points. Connection 1 is a 8 mm cutting ring with a M14x1.5 union nut. Connection 2 is a 8 mm cutting ring with a M14x1.5 union nut. The seal material is NBR. The maximum pressure is 315 bar (4568 psi). The fitting is suitable for temperatures from -20 to 90 °C (-4 to 194 °F). The bulkhead thread has an M 14×1.5 thread with a length of 9 mm. It can withstand 20 rotations per minute. It is made in accordance with DIN EN ISO 8434-1 (DIN 2353).

Pros:

• Adheres to DIN EN ISO 8434-1 (DIN 2353)
• Suitable for hydraulic applications

Specifications

Union nut thread : M14 x 1.5
Load class (DIN 2353) : L (light)
Cutting ring connection (mm) : 8
Connection type : Cutting ring
Material : Steel
Seal material : NBR (nitrile rubber)
Max pressure at 20 °C (bar) : 315
Min temperature (°C) : -20
Max temperature (°C) : 90
Standard : DIN EN ISO 8434-1 (DIN 2353)
Fitting features : Bulkhead,Ball guided,High pressure
Bulkhead length (mm) : 9
Bulkhead nut : M14 x 1.5
Max. number of revolutions (Rpm) : 20
Material connection 1 : Steel
Material connection 2 : Steel
Shape : Straight
Surface protection connection 1 : Galvanic zink plated
With drain : No
