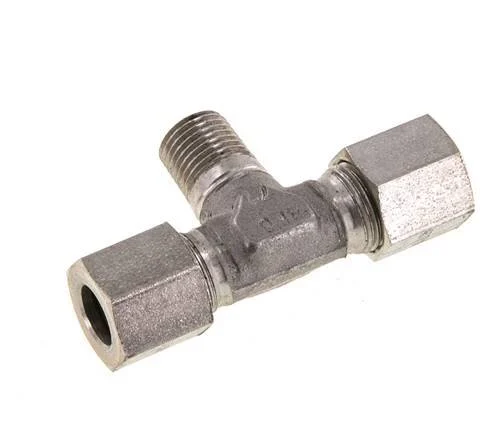

8LL & M10x1 (con) Stainless Steel T-Shape Tee Cutting Fitting with Male Threads 100 bar ISO 8434-1

This stainless steel 1.4571 Tee screw connection is designed with one male threaded connection and two cutting ring connection ports in a T-shape. Connection 1 is a 8 mm cutting ring with a M12x1 union nut. Connection 2 is a 8 mm cutting ring with a M12x1 union nut. Connection 3 has male M 10×1 (conical) threads. The maximum pressure is 100 bar (1450 psi). The fitting is suitable for temperatures from -60 to 400 °C (-76 to 752 °F). It is made in accordance with DIN EN ISO 8434-1 (DIN 2353).

Pros:

• Adheres to DIN EN ISO 8434-1 (DIN 2353)
• Stainless steel material has better chemical resistance than other materials
• Suitable for hydraulic applications

Specifications

Thread : M10 x 1
Union nut thread : M12x1
Cutting ring connection (mm) : 8
Load class (DIN 2353) : LL (very light)
Connection type : Cutting ring,Outer thread metric (Conical)
Material : Stainless steel
Max pressure at 20 °C (bar) : 100
Min temperature (°C) : -60
Max temperature (°C) : 400
Standard : DIN EN ISO 8434-1 (DIN 2353)
Model : T-piece
Material connection 1 : Stainless steel
Material connection 2 : Stainless steel
Material connection 3 : Stainless steel
Material quality connection 1 : Stainless steel (1.4571)
Material quality connection 2 : Stainless steel (1.4571)
Material quality connection 3 : Stainless steel (1.4571)
With drain : No
