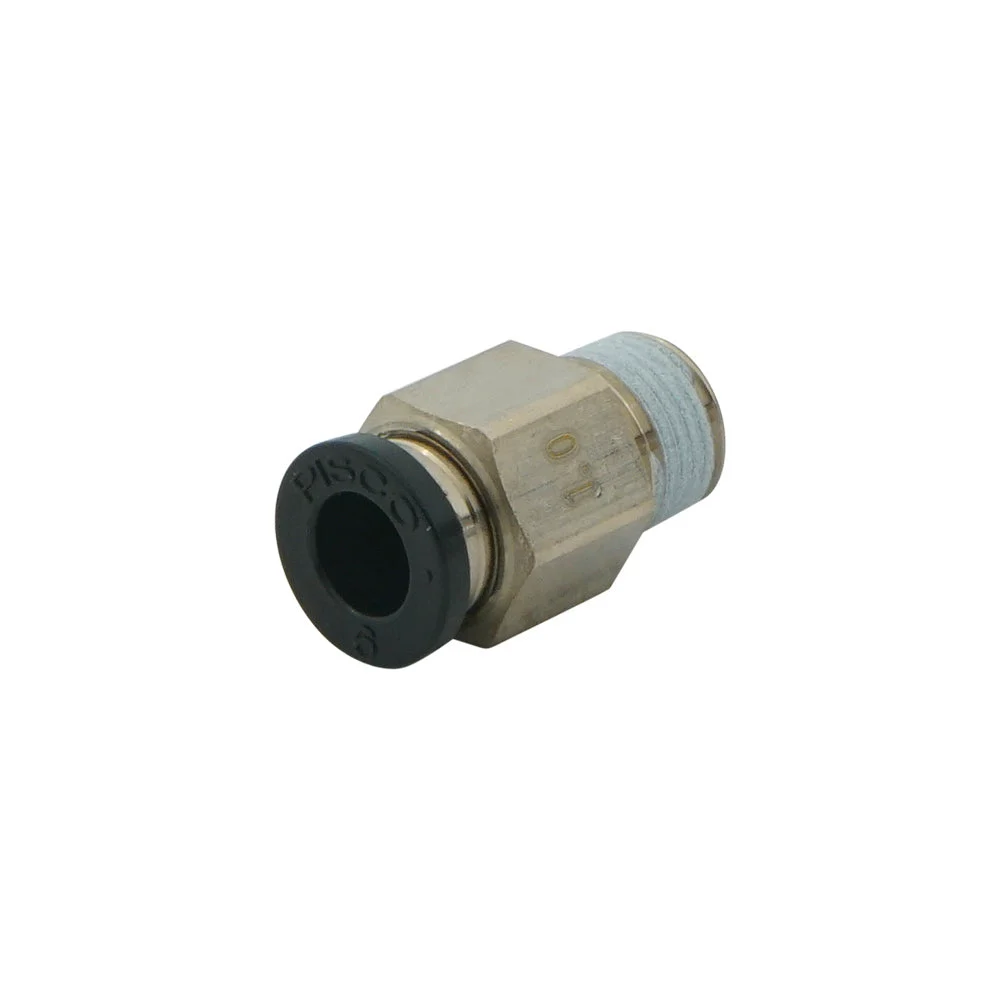

This is a straight 0.5 mm orifice fitting used for air flow control. It is designed to fix the air flow rate by restricting it with a significantly smaller orifice in the threaded side of the fitting.
It has a 8 mm push-in fitting on one side and an R 1/8 inch male threaded port on the other side. The push-in fitting provides an easy connection with the tubing. Push the tube in and the fitting will fix it with stainless steel claws.
Also suitable for vacuum applications at a pressure of -1 bar (-14.5 psi). It has NBR seals that make it suitable for applications within a temperature range from 0 to 60°C (32 to 140 °F) (no freezing).
Pros:
- Simple design
- Small installation place
- Lower cost than a throttle (needle) valve
- Suitable for vacuum applications
- Equipped with easy to connect push-in fittings
Cons:
- Non-adjustable orifice size
- Dust could damage the pneumatic system if vacuum is applied without a filter on the inlet side
PC series
The PC – series includes straight brass/PBT orifice fittings designed for air flow control. The threaded fitting side for all fittings is male threaded R1/8 inch with 18 different possible orifice fitting sizes ranging from 0.3 to 2.0 mm. The push-in fitting sizes range from 4 to 8 mm. These flow restrictors are suitable for a maximum operating pressure of 10 bar and -1 bar for vacuum. These orifice fittings are sealed with NBR O-rings that make them suitable for temperatures ranging from 0 to 60°C.
Specifications
Thread : 1/8 inch
Push-in connection : 8 mm
Connection type : Outer thread conical BSPT-R,Push-in
Material : Brass
Seal material : NBR (nitrile rubber)
Min pressure (bar) : 0
Min pressure difference (bar) : 0
Max pressure at 20 °C (bar) : 10
Min temperature (°C) : 0
Max temperature (°C) : 60
Fitting features : Vacuum
Restricting orifice diameter (mm) : 0.5
Wrench width (mm) : 14
