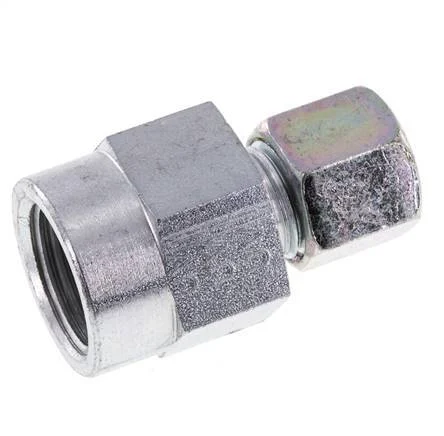

8S & G1/2” Zink plated Steel Straight Cutting Fitting with Female Threads for Pressure Gauges 630 bar ISO 8434-1

This zink plated steel straight screwed-on screw connection is designed with This fittings is designed to use with pressure gauge. Connection 1 is a 8 mm cutting ring with a M16x1.5 union nut. Connection 2 has female G 1/2 inch threads. The maximum pressure is 630 bar (9135 psi). The fitting is suitable for temperatures from -40 to 120 °C (-40 to 248 °F). It is made in accordance with DIN EN ISO 8434-1 (DIN 2353).

Pros:

• Adheres to DIN EN ISO 8434-1 (DIN 2353)
• Suitable for hydraulic applications

Specifications

Thread : 1/2 inch
Union nut thread : M16 x 1.5
Load class (DIN 2353) : S (heavy)
Cutting ring connection (mm) : 8
Connection type : Cutting ring,Inner thread cylindrical BSPP-G
Material : Steel
Max pressure at 20 °C (bar) : 630
Min temperature (°C) : -40
Max temperature (°C) : 120
Standard : DIN EN ISO 8434-1 (DIN 2353)
Material connection 1 : Steel
Material connection 2 : Steel
Shape : Straight
Surface protection connection 1 : Galvanic zink plated
With drain : No
