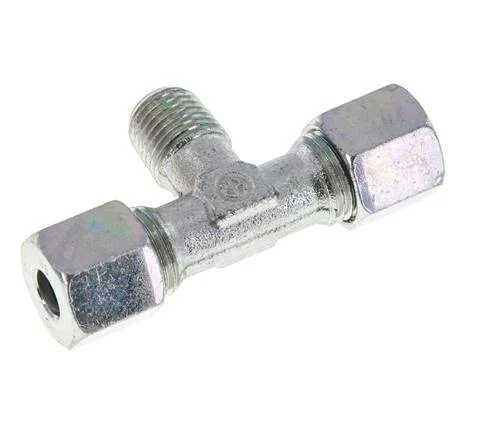

8S & M14x1.5 (con) Zink plated Steel T-Shape Tee Cutting Fitting with Male Threads 640 bar ISO 8434-1

This zink plated steel Tee screw connection is designed with one male threaded connection and two cutting ring connection ports in a T-shape. Connection 1 is a 8 mm cutting ring with a M16x1.5 union nut. Connection 2 is a 8 mm cutting ring with a M16x1.5 union nut. Connection 3 has male M 14×1.5 (conical) threads. The maximum pressure is 640 bar (9280 psi). The fitting is suitable for temperatures from -40 to 120 °C (-40 to 248 °F). It is made in accordance with DIN EN ISO 8434-1 (DIN 2353).

Pros:

• Adheres to DIN EN ISO 8434-1 (DIN 2353)
• Suitable for hydraulic applications

Specifications

Thread : M14 x 1.5
Union nut thread : M16 x 1.5
Cutting ring connection (mm) : 8
Load class (DIN 2353) : S (heavy)
Connection type : Cutting ring,Outer thread metric (Conical)
Material : Steel
Max pressure at 20 °C (bar) : 640
Min temperature (°C) : -40
Max temperature (°C) : 120
Standard : DIN EN ISO 8434-1 (DIN 2353)
Model : T-piece
Material connection 1 : Steel
Material connection 2 : Steel
Material connection 3 : Steel
Surface protection connection 1 : Galvanic zink plated
Surface protection connection 2 : Galvanic zink plated
Surface protection connection 3 : Galvanic zink plated
With drain : No
