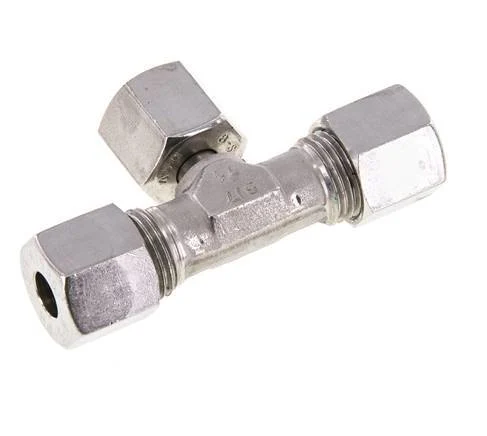

This stainless steel 1.4571 Tee screw connection is designed with cutting ring and swivel tube connection ports. It has an adjustable connection. Connection 1 is a 8 mm cutting ring with a M16x1.5 union nut. Connection 2 is a 8 mm cutting ring with a M16x1.5 union nut. Connection 3 has a 8 mm swivel tube connection. The maximum pressure is 630 bar (9135 psi). The fitting is suitable for temperatures from -60 to 400 °C (-76 to 752 °F). It is made in accordance with DIN EN ISO 8434-1 (DIN 2353).
Pros:
- Adheres to DIN EN ISO 8434-1 (DIN 2353)
- It has adjustable connection
- Stainless steel material has better chemical resistance than other materials
- Suitable for hydraulic applications
Specifications
Union nut thread : M16 x 1.5
Swivel tube connection : 8 S
Cutting ring connection (mm) : 8
Load class (DIN 2353) : S (heavy)
Connection type : Cutting ring,Swivel tube connection
Material : Stainless steel
Fitting features : Adjustable
Max pressure at 20 °C (bar) : 630
Min temperature (°C) : -60
Max temperature (°C) : 400
Standard : DIN EN ISO 8434-1 (DIN 2353)
Model : T-piece
Material connection 1 : Stainless steel
Material connection 2 : Stainless steel
Material connection 3 : Stainless steel
Material quality connection 1 : Stainless steel (1.4571)
Material quality connection 2 : Stainless steel (1.4571)
Material quality connection 3 : Stainless steel (1.4571)
With drain : No
