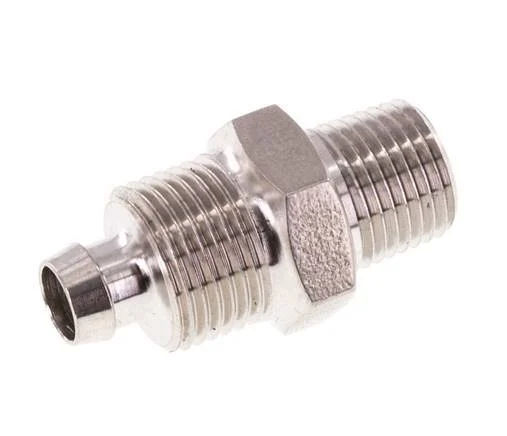

8×6 & 1/8”NPT Stainless Steel 1.4571 Straight Push-on Fitting with Male Threads

This stainless steel 1.4571 straight push-on fitting is designed with one push-on connection and one male threaded connection. Connection 1 is a 8×6 mm push-on connection. Connection 2 has 1/8 inch NPT male threads. The operating pressure corresponds to the pipes used.

Note: 1 union nut are not included. The union nut thread is M 12 x 1.

Pros:

• Easy assembly and disassembly with the push-on connection design
• Stainless steel material has better chemical resistance than other common fitting materials like brass, aluminum, and plastic

Specifications

Thread : 1/8 inch
Push-on connection : 6×8 mm
Union nut thread : M12x1
Connection type : Push-on,Outer thread conical (NPT)
Material : Stainless steel
Quality of material : Stainless steel (1.4571)
Material connection 1 : Stainless steel
Material connection 2 : Stainless steel
Material quality connection 1 : Stainless steel (1.4571)
Material quality connection 2 : Stainless steel (1.4571)
Shape : Straight
With drain : No
