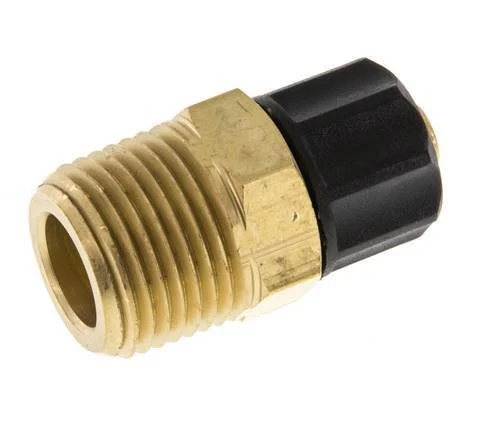

8×6 & 3/8”NPT Brass Straight Push-on Fitting with Male Threads

This brass straight push-on fitting is designed with one push-on connection and one male threaded connection. Connection 1 is a 8×6 mm push-on connection. Connection 2 has 3/8 inch NPT male threads. The operating pressure range is -0.95 to 15 bar (-14 to 218 psi), making it suitable for vacuums. The fitting is suitable for temperatures from -10 to 70 °C (14 to 158 °F).

Pros:

• Easy assembly and disassembly with the push-on connection design
• It can be used for vacuum applications
• Suitable for neutral and non-corrosive media

Specifications

Thread : 3/8 inch
Push-on connection : 6×8 mm
Connection type : Push-on,Outer thread conical (NPT)
Material : Brass
Min pressure (bar) : -0.95
Max pressure at 20 °C (bar) : 15
Min temperature (°C) : -10
Max temperature (°C) : 70
Fitting features : Vacuum
Material connection 1 : Brass
Material connection 2 : Plastic
Shape : Straight
With drain : No
