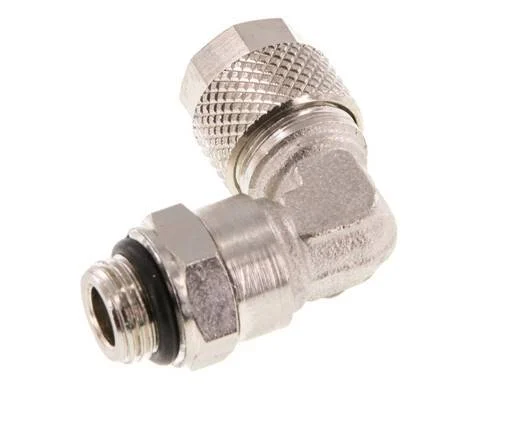

8×6 & G1/8” Nickel plated Brass Elbow Push-on Fitting with Male Threads NBR Rotatable [2 Pieces]

This nickel plated brass elbow push-on fitting is designed with one push-on connection and one male threaded connection. Connection 1 is a 8×6 mm push-on connection. Connection 2 has G 1/8 inch male threads. The seal material is NBR. The operating pressure range is -0.95 to 20 bar (-14 to 290 psi), making it suitable for vacuums. The fitting is suitable for temperatures from -20 to 70 °C (-4 to 158 °F).

Pros:

• Easy assembly and disassembly with the push-on connection design
• It can be used for vacuum applications
• Thread connection is rotatable
• Suitable for neutral and non-corrosive media

Specifications

Thread : 1/8 inch
Push-on connection : 6×8 mm
Connection type : Outer thread cylindrical BSPP-G,Push-on
Material : Brass
Seal material : NBR (nitrile rubber)
Min pressure (bar) : -0.95
Max pressure at 20 °C (bar) : 20
Min temperature (°C) : -20
Max temperature (°C) : 70
Fitting features : Vacuum,Rotatable
Bend angle (°) : 90
Material connection 1 : Brass
Material connection 2 : Brass
Shape : Elbow
Surface protection connection 1 : Nickel-plated
Surface protection connection 2 : Nickel-plated
With drain : No
