9 mm (3/8”) & G3/8” LH Brass Hose Barb Male [2 Pieces]

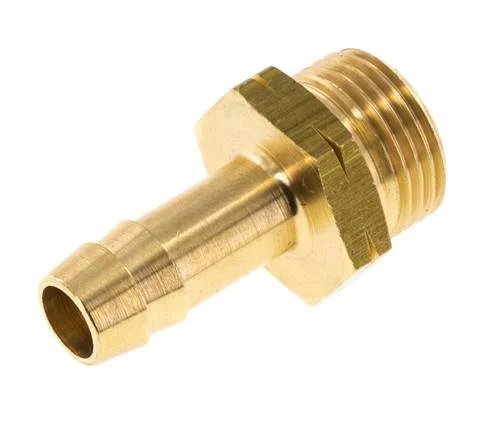

This brass hose screw-in connection is designed with a hose pillar and a male thread. Connection 1 is hose pillar, designed for a hose with an inner diameter of 9 mm (3/8 inch). Connection 2 has G 3/8 inch male left hand threads. The threaded connection has internal cone. The maximum pressure is 16 bar (232 psi). The wrench width is 19 mm.

Pros:

• The threaded connection has internal cone
• Suitable for neutral and non-corrosive media

Specifications

Thread : 3/8 inch
Hose pillar connection : 3/8 inch (9.52 mm)
Connection type : Hose pillar,External thread BSPP-G left hand
Material : Brass
Max pressure at 20 °C (bar) : 16
Threaded end seal 1 : Internal cone
Material connection 1 : Brass
Material connection 2 : Brass
Shape : Straight
With drain : No
