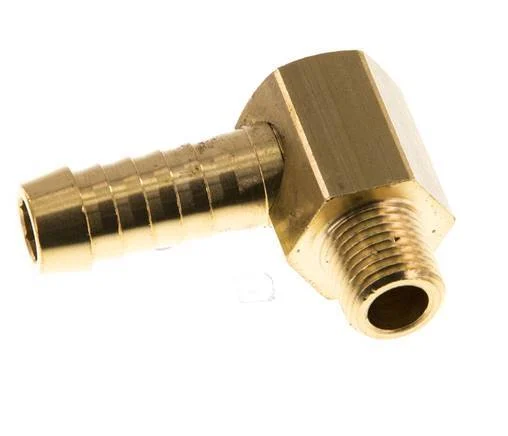

9 mm (3/8”) & M10x1 (taper) Brass Elbow Hose Barb with Male Threads [2 Pieces]

This brass elbow hose screw-in connection is designed with a hose pillar and a male thread. Connection 1 is hose pillar, designed for a hose with an inner diameter of 9 mm (3/8 inch). Connection 2 has M 10×1 (conical) male threads. The maximum pressure is 16 bar (232 psi).

Pros:

• Suitable for neutral and non-corrosive media

Specifications

Thread : M10 x 1
Hose pillar connection : 3/8 inch (9.52 mm)
Connection type : Outer thread metric (Conical),Hose pillar
Material : Brass
Max pressure at 20 °C (bar) : 16
Bend angle (°) : 90
Material connection 1 : Brass
Material connection 2 : Brass
Shape : Elbow
With drain : No
