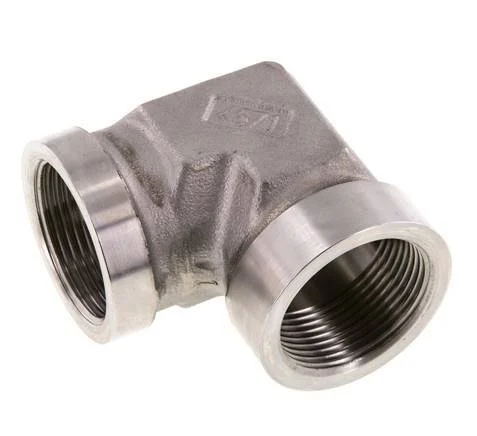

90deg Angled Fitting G1 1/4” Female High Pressure Stainless Steel 160bar (2248.0psi) Hydraulic

This 90-degree elbow fitting is used for high pressure hydraulic applications up to 160 bar (2248.0 psi). Stainless steel 316 (1.4571) fittings have excellent corrosion resistance (better than stainless steel 304).

Specifications

Thread : 1 1/4 inch
Connection type : Inner thread cylindrical BSPP-G
Material : Stainless steel
Max pressure at 20 °C (bar) : 160
Fitting features : Hydraulic
Quality of material : Stainless steel (1.4571)
Bend angle (°) : 90
Material connection 1 : Stainless steel
Material connection 2 : Stainless steel
Material quality connection 1 : Stainless steel (1.4571)
Material quality connection 2 : Stainless steel (1.4571)
Shape : Elbow
With drain : No
