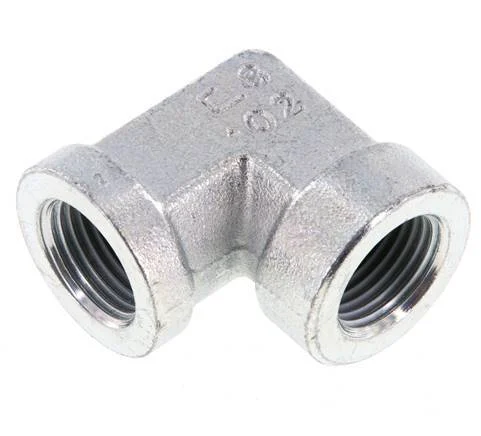

90deg Angled Fitting G1/2” Female High Pressure Steel 225bar (3161.25psi) Hydraulic

This 90-degree elbow fitting is used for high pressure hydraulic applications up to 225 bar (3161.25 psi). Zinc-coated steel fittings provide some corrosion resistance, but are not meant for corrosive environments.

Specifications

Thread : 1/2 inch
Connection type : Inner thread cylindrical BSPP-G
Material : Steel
Max pressure at 20 °C (bar) : 225
Fitting features : Hydraulic
Bend angle (°) : 90
Material connection 1 : Steel
Material connection 2 : Steel
Shape : Elbow
Surface protection connection 1 : Galvanic zink plated
Surface protection connection 2 : Galvanic zink plated
With drain : No
