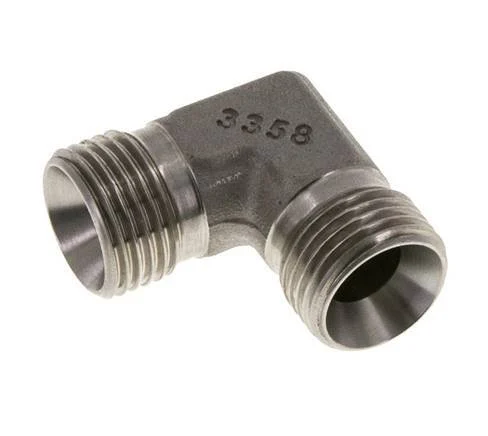

90deg Angled Fitting G1/2” High Pressure Stainless Steel 60° Cone 350bar (4917.5psi) Hydraulic

This 90-degree elbow fitting is used for high pressure hydraulic applications up to 350 bar (4917.5 psi). Stainless steel 316 (1.4571) fittings have excellent corrosion resistance (better than stainless steel 304). It has a 60° cone seat design.

Specifications

Thread : 1/2 inch
Connection type : Outer thread cylindrical BSPP-G
Material : Stainless steel
Max pressure at 20 °C (bar) : 350
Fitting features : Hydraulic
Type of sealing : 60° cone
Quality of material : Stainless steel (1.4571)
Bend angle (°) : 90
Material connection 1 : Stainless steel
Material connection 2 : Stainless steel
Material quality connection 1 : Stainless steel (1.4571)
Material quality connection 2 : Stainless steel (1.4571)
Shape : Elbow
With drain : No
