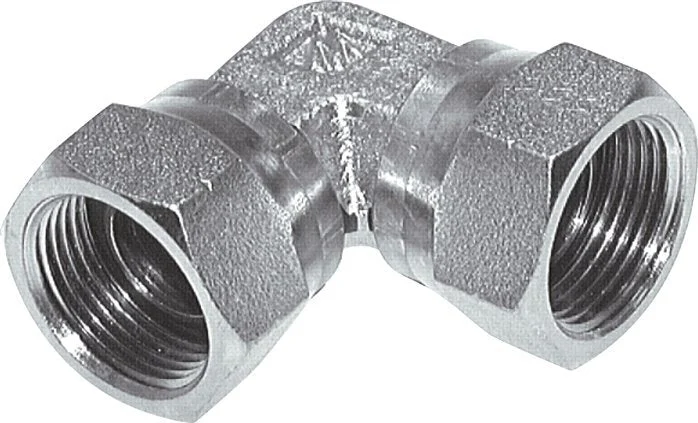

90deg Angled Fitting G2” Female High Pressure Steel 60° Cone 75bar (1053.75psi) Hydraulic

This 90-degree elbow fitting is used for high pressure hydraulic applications up to 75 bar (1053.75 psi). Zinc-coated steel fittings provide some corrosion resistance, but are not meant for corrosive environments. It has a 60° cone seat design. Due to the large radius on the elbow, there is minimal pressure loss.

Specifications

Thread : 2 inch
Connection type : Inner thread cylindrical BSPP-G
Material : Steel
Max pressure at 20 °C (bar) : 75
Fitting features : Hydraulic
Type of sealing : 60° cone
Bend angle (°) : 90
Material connection 1 : Steel
Material connection 2 : Steel
Shape : Elbow
Surface protection connection 1 : Galvanic zink plated
Surface protection connection 2 : Galvanic zink plated
With drain : No
