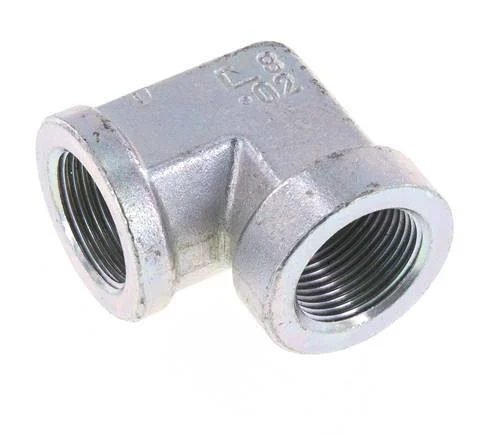

90deg Angled Fitting G3/4” Female High Pressure Steel 200bar (2810.0psi) Hydraulic

This 90-degree elbow fitting is used for high pressure hydraulic applications up to 200 bar (2810.0 psi). Zinc-coated steel fittings provide some corrosion resistance, but are not meant for corrosive environments.

Specifications

Thread : 3/4 inch
Connection type : Inner thread cylindrical BSPP-G
Material : Steel
Max pressure at 20 °C (bar) : 200
Fitting features : Hydraulic
Bend angle (°) : 90
Material connection 1 : Steel
Material connection 2 : Steel
Shape : Elbow
Surface protection connection 1 : Galvanic zink plated
Surface protection connection 2 : Galvanic zink plated
With drain : No
