90deg Angled Fitting G3/8” High Pressure Steel 60° Cone 325bar (4566.25psi) Hydraulic

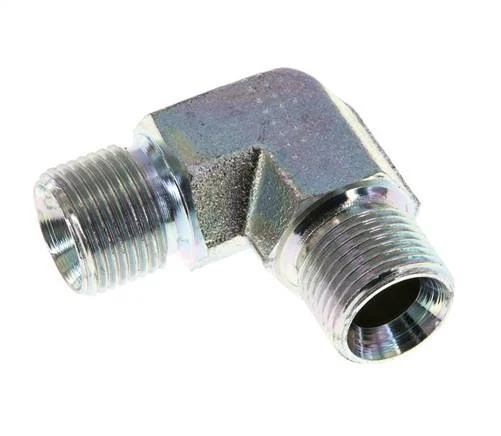

This 90-degree elbow fitting is used for high pressure hydraulic applications up to 325 bar (4566.25 psi). Zinc-coated steel fittings provide some corrosion resistance, but are not meant for corrosive environments. It has a 60° cone seat design.

Specifications

Thread : 3/8 inch
Connection type : Outer thread cylindrical BSPP-G
Material : Steel
Max pressure at 20 °C (bar) : 325
Fitting features : Hydraulic
Type of sealing : 60° cone
Bend angle (°) : 90
Material connection 1 : Steel
Material connection 2 : Steel
Shape : Elbow
Surface protection connection 1 : Galvanic zink plated
Surface protection connection 2 : Galvanic zink plated
With drain : No
