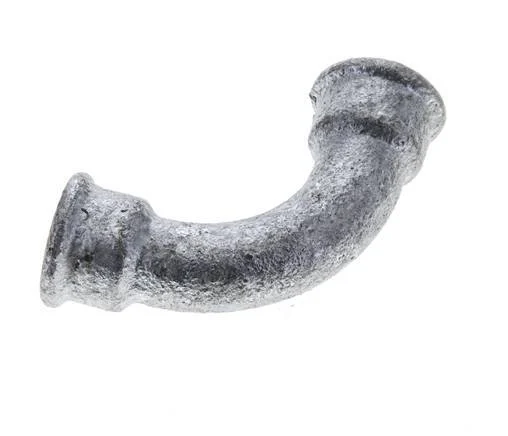

90deg Angled Fitting Rp3/8” Female Long Cast Iron 25bar (351.25psi) [2 Pieces]

This 90-degree elbow fitting is used to change flow direction in your piping. It is used in low-pressure applications up to 25 bar (351.25 psi). It is made of malleable cast iron and has a zinc coating for corrosion protection.

Specifications

Thread : 3/8 inch
Connection type : Inner thread cylindrical BSPT-Rp
Material : Malleable cast iron
Max pressure at 20 °C (bar) : 25
Fitting features : Long type 2/G1
Length (mm) : 48
Bend angle (°) : 90
Material connection 1 : Malleable cast iron
Material connection 2 : Malleable cast iron
Shape : Elbow
Surface protection connection 1 : Galvanic zink plated
Surface protection connection 2 : Galvanic zink plated
With drain : No
