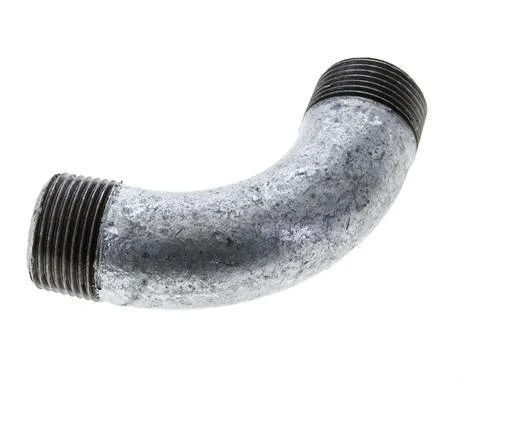

90deg Angled Pipe R3/4” Cast Iron 25bar (351.25psi) [2 Pieces]

This 90-degree elbow pipe with male threads is used to connect two female threaded pipes or components. It is used in low-pressure applications up to 25 bar (351.25 psi). It is made of malleable cast iron and has a zinc coating for corrosion protection. Due to the large radius on the elbow, there is minimal pressure loss. It is suitable for steam, water, and air.

Specifications

Thread : 3/4 inch
Connection type : Outer thread conical BSPT-R
Material : Malleable cast iron
Max pressure at 20 °C (bar) : 25
Length (mm) : 60
Bend angle (°) : 90
Material connection 1 : Malleable cast iron
Material connection 2 : Malleable cast iron
Shape : Elbow
Surface protection connection 1 : Galvanic zink plated
Surface protection connection 2 : Galvanic zink plated
With drain : No
