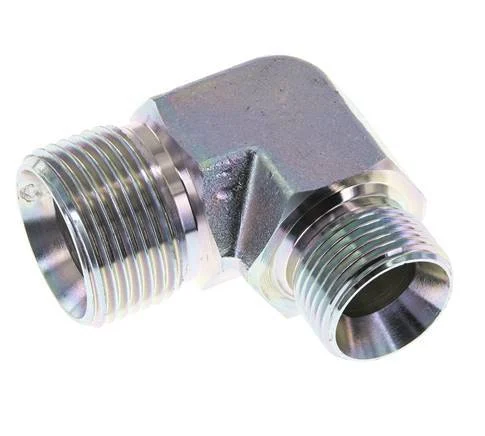

90deg Angled Reducing Fitting G3/4” x G1” High Pressure Steel 60° Cone 225bar (3161.25psi) Hydraulic

This 90-degree elbow fitting is used for high pressure hydraulic applications up to 225 bar (3161.25 psi). Zinc-coated steel fittings provide some corrosion resistance, but are not meant for corrosive environments. It has a 60° cone seat design.

Specifications

Thread : 1 inch
Thread (smaller) : 3/4 inch
Connection type : Outer thread cylindrical BSPP-G
Material : Steel
Max pressure at 20 °C (bar) : 225
Fitting features : Hydraulic,Reducing
Type of sealing : 60° cone
Bend angle (°) : 90
Material connection 1 : Steel
Material connection 2 : Steel
Shape : Elbow
Surface protection connection 1 : Galvanic zink plated
Surface protection connection 2 : Galvanic zink plated
With drain : No
