90deg Elbow Press Fitting – 22mm Female & R 3/4” Male – Stainless Steel

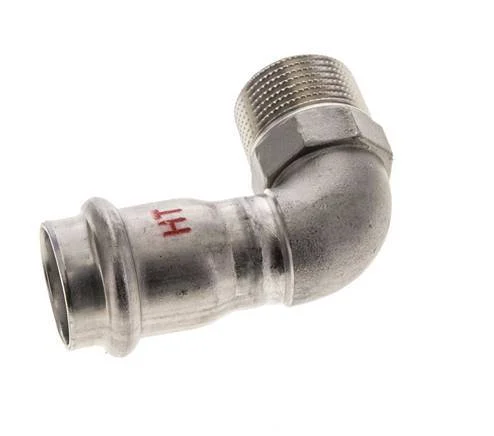

This is a 90 degree elbow press fitting made from stainless steel 1.4404. The fitting has a female press port and a male threaded port. Connection 1 is designed for a tube with an outer diameter of 22 mm and connection 2 has R 3/4 inch male threads. The fitting has an FKM sealing ring. The maximum pressure is 40 bar (580 psi). The fitting is suitable for temperatures from -20 to 200 °C (-4 to 392 °F). Temporary, the max temperature can be +280 °C (536 °F). The fitting length is 57 mm.

Pros:

• The FKM seal is suitable for oil bearing compressed air and water/glycol mixtures
• Can be pressed using all standard die sets and slings, which correspond to the original pressing contours M, V and SA
• Stainless steel material has better chemical resistance than other materials

Specifications

Thread : 3/4 inch
Tube outer diameter : 22 mm
Connection type : Outer thread conical BSPT-R,Female press connection
Material : Stainless steel
Seal material : FKM (FPM)
Max pressure at 20 °C (bar) : 40
Min temperature (°C) : -20
Max temperature (°C) : 200
Length (mm) : 57
Material connection 1 : Stainless steel
Material connection 2 : Stainless steel
Material quality connection 1 : Stainless steel (1.4404)
Material quality connection 2 : Stainless steel (1.4404)
With drain : No
