90deg Elbow Press Fitting – 35mm Female & R 1-1/4” Male – Copper alloy

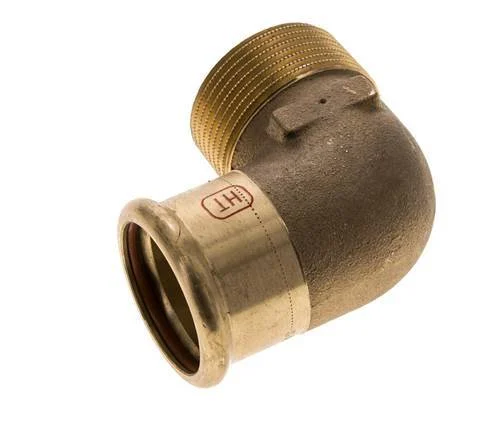

This is a 90 degree elbow press fitting made from copper alloy. The fitting has a female press port and a male threaded port. Connection 1 is designed for a tube with an outer diameter of 35 mm and connection 2 has R 1-1/4 inch male threads. The fitting has an FKM sealing ring. The maximum pressure is 16 bar (232 psi). The fitting is suitable for temperatures from -20 to 200 °C (-4 to 392 °F). Temporary, the max temperature can be +280 °C (536 °F). The fitting length is 52 mm.

Pros:

• The FKM seal is suitable for oil bearing compressed air and water/glycol mixtures
• Can be pressed using all standard die sets and slings, which correspond to the original pressing contours M, V and SA

Specifications

Thread : 1 1/4 inch
Tube outer diameter : 35 mm
Connection type : Outer thread conical BSPT-R,Female press connection
Material : Copper alloy
Seal material : FKM (FPM)
Max pressure at 20 °C (bar) : 16
Min temperature (°C) : -20
Max temperature (°C) : 200
Length (mm) : 52
Material connection 1 : Copper alloy
Material connection 2 : Copper alloy
With drain : No
