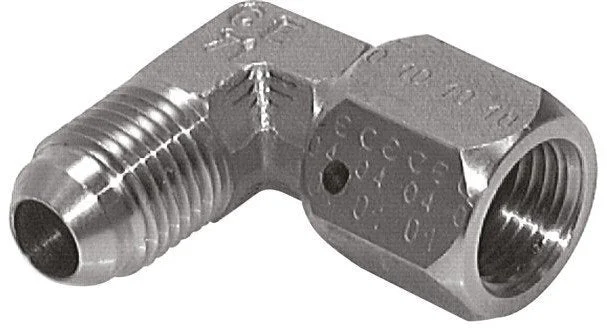

90deg JIC Angled Fitting UN 1-7/8”-12 (Dash Size 24) Male x Female Stainless Steel 100bar (1405.0psi)

This is a JIC 90-degree fitting with UNF threads. Stainless steel 316 (1.4571) fittings have excellent corrosion resistance (better than stainless steel 304). The maximum operating pressure is 100 bar (1405.0 psi).

Specifications

Thread : UN 1-7/8-12
Dash Size : 24
Connection type : Inner thread flare (UNF),Outer thread flare (UNF)
Material : Stainless steel
Max pressure at 20 °C (bar) : 100
Quality of material : Stainless steel (1.4571)
Bend angle (°) : 90
Material connection 1 : Stainless steel
Material connection 2 : Stainless steel
Material quality connection 1 : Stainless steel (1.4571)
Material quality connection 2 : Stainless steel (1.4571)
Shape : Elbow
