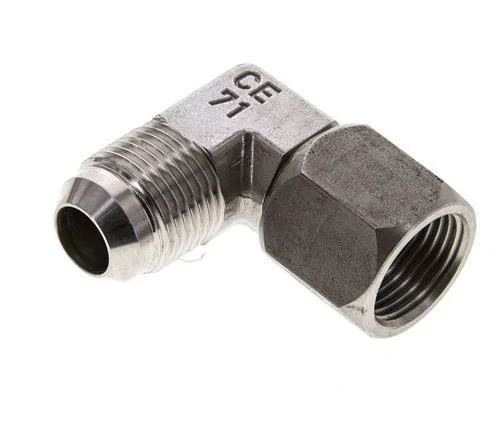

90deg JIC Angled Fitting UNF 7/8”-14 (Dash Size 10) Male x Female Stainless Steel 210bar (2950.5psi)

This is a JIC 90-degree fitting with UNF threads. Stainless steel 316 (1.4571) fittings have excellent corrosion resistance (better than stainless steel 304). The maximum operating pressure is 210 bar (2950.5 psi).

Specifications

Thread : UNF 7/8-14
Dash Size : 10
Connection type : Inner thread flare (UNF),Outer thread flare (UNF)
Material : Stainless steel
Max pressure at 20 °C (bar) : 210
Quality of material : Stainless steel (1.4571)
Bend angle (°) : 90
Material connection 1 : Stainless steel
Material connection 2 : Stainless steel
Material quality connection 1 : Stainless steel (1.4571)
Material quality connection 2 : Stainless steel (1.4571)
Shape : Elbow
