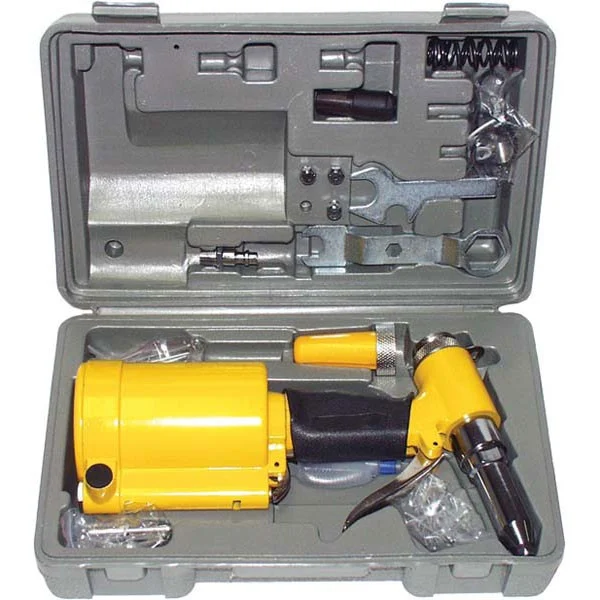

Full kit includes the AT-6015 air riveter shown above. Kit also includes 3 x 10pc bags of rivets and all necessary accessories. Nipple, oil pot, return springs, o-rings, wrenches and more. Easy operation in any position with one hand.
- Features:
- Hydraulic piston for increased power.
- Ultra high speed ideal for assembly line.
- Sets rivets up to 3/16″ (4.8mm) in diameter.
- Up to 1,586 lbs (720kg) of pull for tough jobs
- Easy operation in any position with one hand.
- Front exhaust.
- Specifications:
- Blind rivet setting capacity: 3/16″,5/32″,1/8″,3/32 “
- Traction power:1,586 lbs (720 kgs)
- Stroke length: 9/16″ (14 mm)
- Air inlet (PT): 1/4″
- Air hose (ID): 3/8″
- Average air consumption: 0.03 cfm (0.86 l/min)
- Working pressure: 90 psi/6.3 kg
- Length x height: 8.86″X3.15″ (225×80 mm)
- Weight: 1.70 kgs /3.74 lbs
Sets rivets up to 3/16″ (4.8mm) in diameter.Up to 1,586 lbs (720kg) of pull for tough jobsEasy operation in any position with one hand.
