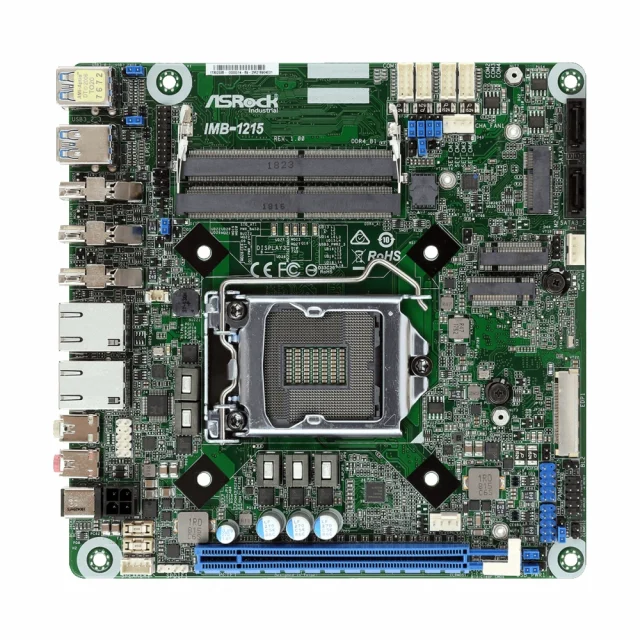

Features with all optional accessories:
- Intel® 7th/ 6th Gen (Kabylake-S/Skylake-S) Core™ Processors with H110 chipset
- 2 x 260-pin SO-DIMM up to 32GB DDR4 2133 MHz (16GB per DIMM)
- 1 x PCIe x4 (Gen2), 4 x USB 3.1 Gen1, 4 x USB 2.0, 1 x mini-PCIe, 1 x mSATA, 4 x COM, 2 x SATA3
- 2 x Intel Gigabit LAN
- Supports dual display, 2 x HDMI 2.0, 1 x VGA header, 1 x LVDS
- TPM Header
- 12V/ 19~24V DC-In
Technical Details
| Dimensions | Mini-ITX (6.7-in x 6.7-in) |
| CPU | Intel® 7th/ 6th Gen (Kabylake-S/Skylake-S) Core™ Processors |
| Chipset | Intel® H110 |
| Socket | LGA1151 |
| BIOS | AMI SPI 128 Mbit |
| Technology | Dual Channel DDR4 2133 MHz |
| Capacity | 32 GB (16 GB per DIMM) |
| Socket | 2 x 260-pin SO-DIMM |
| Controller | Intel® Gen9 Graphics DX 11/12 |
| HDMI | HDMI 1.4b Max resolution up to 4096×2160 at24Hz |
| VGA | Max resolution up to 1920×1200 at60Hz |
| LVDS | Dual channel 24 bit up to 1920×1200 at60Hz |
| MultiDisplay | Dual Display |
| PCIe | 1 x PCIe x4 (Gen2) |
| mini-PCIe | 1 x Half size with PCIe x1 and USB 2.0 |
| Interface | Realtek ALC887, High Definition Audio. Line-out,Mic-in |
| Controller/ Speed | LAN1: Intel® I219V with 10/100/1000 Mbps LAN2: Intel® I210 with 10/100/1000Mbps |
| Connector | 2 x RJ-45 |
| HDMI | 2 x HDMI 1.4b |
| Ethernet | 2 x 1 Gigabit LAN |
| USB | 4 x USB 3.0 |
| Audio | 2 (Mic-in, Line-out) |
| DC Jack | 1 |
| USB | 4 x USB 2.0 (2 x 2.54 pitch header) |
| COM | COM1, 2(RS-232/422/485) COM3,4(RS-232) |
| GPIO | 4 x GPI, 4 x GPO |
| TPM | TPM Header |
| LVDS | 1 |
| VGA | 1 x Header |
| SATA PWR Output | 1 |
| Speaker Header | 1 |
| mSATA | 1 x Full size with SATA3 and USB 2.0 |
| SATA | 2 x SATA3 (6Gb/s) |
| Output | From Super I/O to drag RESETCON# |
| Interval | 256 Segments, 0, 1, 2, …255sec |
| Input PWR | 12V or 19~24V DC-In with 4-pin plug PWR cable or DC Jack |
| Power On | AT/ATX Supported – AT : Directly PWR on as power input ready – ATX : Press button to PWR on after power input ready |
| Operating Temp | 0ºC ~ 60ºC |
| Storage Temp | -40° C ~ 85° C |
| Operating Humidity | 5% ~ 90% |
| Storage Humidity | 5% ~ 90% |
