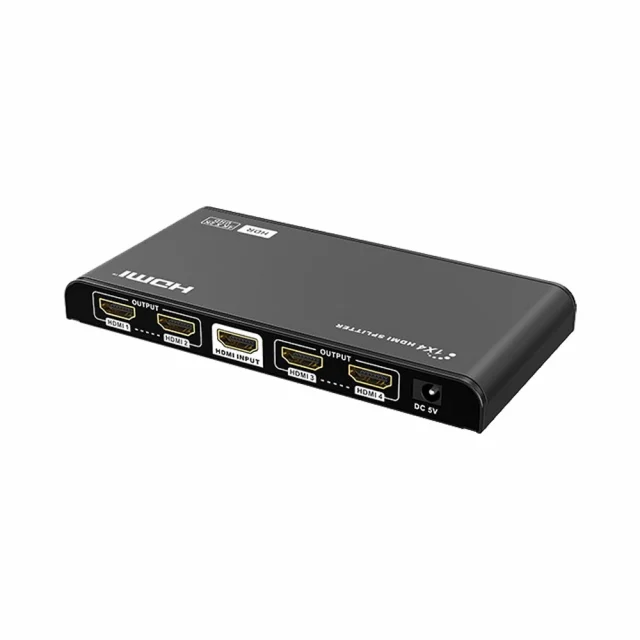

AVA-HDMI-SPT-1IN4OUT-HDR2 Includes Only:
- HDMI Splitter
- DC5V/1A power Adapter
- User Manual
Features:
- Distribute 1 HDMI source to 4 HDMI display
- Support Ultra HD resolution 4K x 2K at 60Hz
- Support HDMI 3D Support YUV 4: 4: 4
- Support HDR HDCP 2.2 compliant Low power consumption
- Support configures the Video resolution automatically according to the capabilities of each connected monitor, allows simultaneous mixed 4K and 1080p display outputs
- Plug and play
1×4 HDMI splitter distributes 1 HDMI source to 4 HDMI displays simultaneously. Apply for STB, Blu-ray Player, Media Player, Laptop, D-VHS and other HD-Player devices. It’s compatible with HDMI 3D and 4K x 2K.
Technical Details
| Input ports | 1 x HDMI |
| Output ports | 4 x HDMI |
| Power indicator led | 1 x LED |
| Signal indicator led | 4 x LED |
| HDMI Version | Compatible with HDMI 2.0, HDMI 1.4 |
| HDCP Version | Compatible with HDCP 1.4, HDCP2.2 |
| Transmission rate | 18Gbps |
| Frequency Range | 25MH 594f 1Hz |
| Video form | Support ED Video and 4K x 2K at 50/ó0Hz ultra HD Video |
| Support Audio format | Support standard Audio and DSD (Direct Stream Digital) and HD (HBR) Audio |
| HDMI Resolution |
|
| HDR | Support |
| EDID Management | Support smart EDID Management, to display different resolution monitors at the same time |
| Working temperature | 0 deg ~ 60 deg |
| Power supply | DCSV/1A |
| Power consumption | <3W |
| Dimension | 158 mm (L) x 😯 mm (W) x 17 mm (H) |
| Weight | 200g |
| Color | Black |
